Aerofoil Installation Case Study — Portland, Oregon
- Study Type
- Single-site thermal and temperature monitoring study
- Location
- Portland, Oregon
- Period
- December 2025
- Author
- Hayden Beck
- Contact
- Hayden@MPHGlobal.com
Single-site thermal and temperature monitoring study (December 2025): 32 Aerofoils installed on a 28-foot HillPhoenix O5DMH8 run that had difficulty maintaining product temperatures. Compares two-day baseline averages to two-day post-install averages using store monitoring data and thermal imaging.
Key Findings
- Average in-cabinet temperature reduction: 1.31°F (up to 1.74°F)
- Maximum temperature reduction up to 3.2°F; minimum up to 1.6°F
- Overnight thermal imaging: up to 3.8°F reduction at air curtain
- Aisle temperatures increased up to 2.3°F — less cold air spill
Study pages
Detailed findings

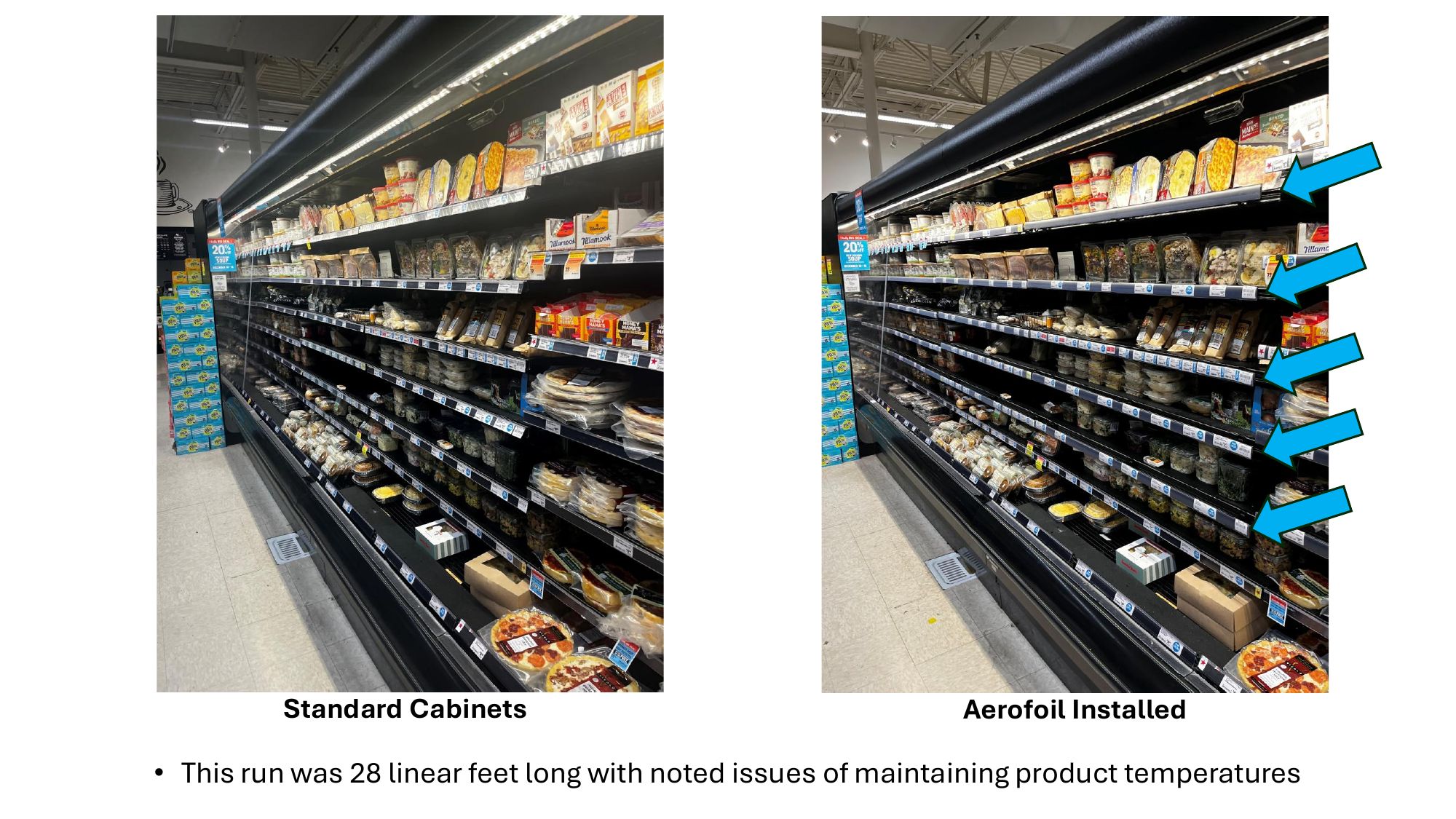

Installation details
32 Aerofoils were installed on a 28 linear-foot HillPhoenix O5DMH8 refrigerated run that had been experiencing difficulty maintaining consistent product temperatures. Store monitoring data and thermal imaging were used to compare two-day baseline averages to two-day post-install averages.

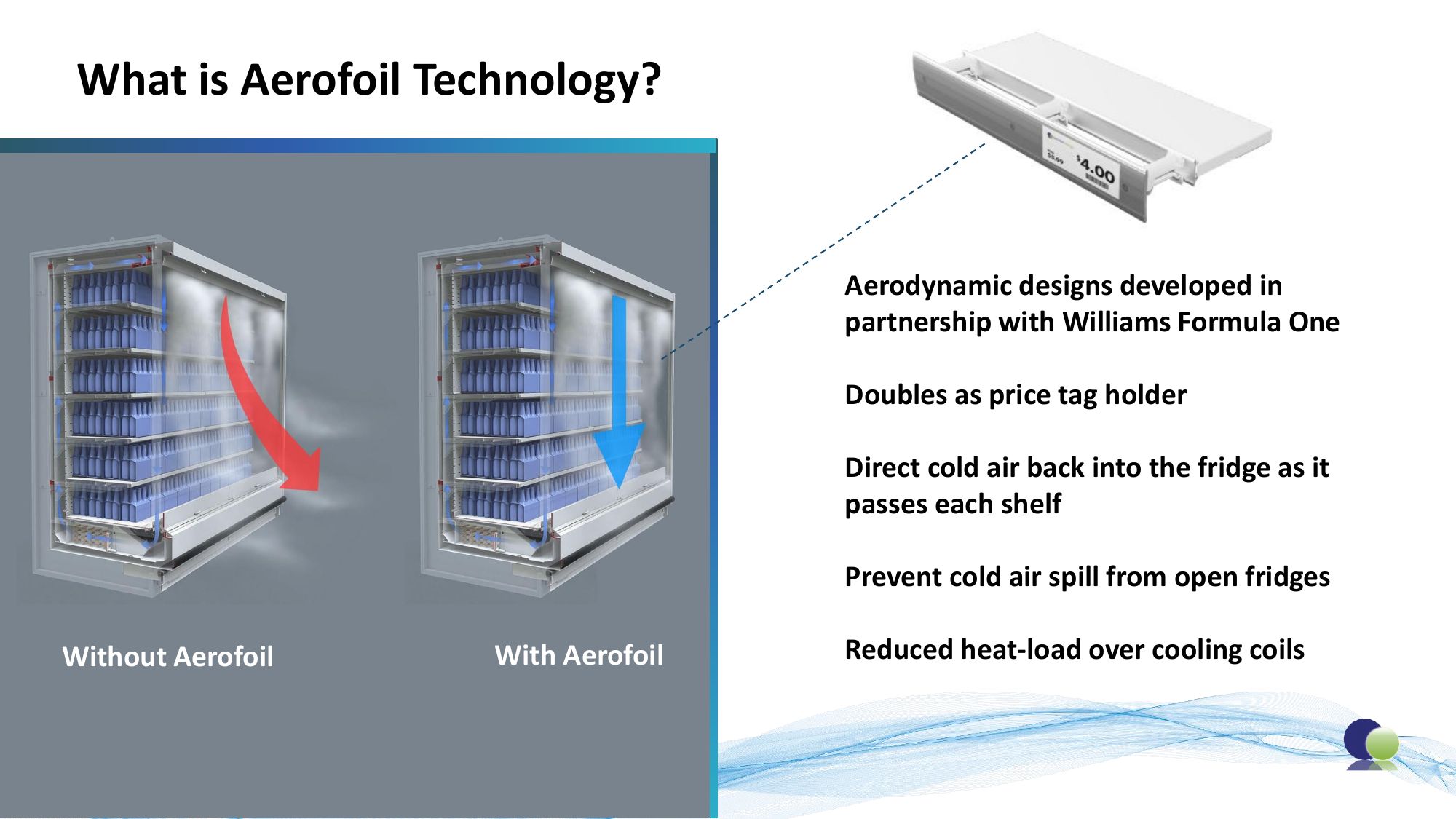

Technology overview
- Aerodynamic design developed in partnership with Williams Formula One.
- Doubles as a price tag holder — no separate label strip needed.
- Directs cold air back into the cabinet as it passes each shelf, strengthening the air curtain.
- Prevents cold air spill from open fridges and reduces heat load over cooling coils.

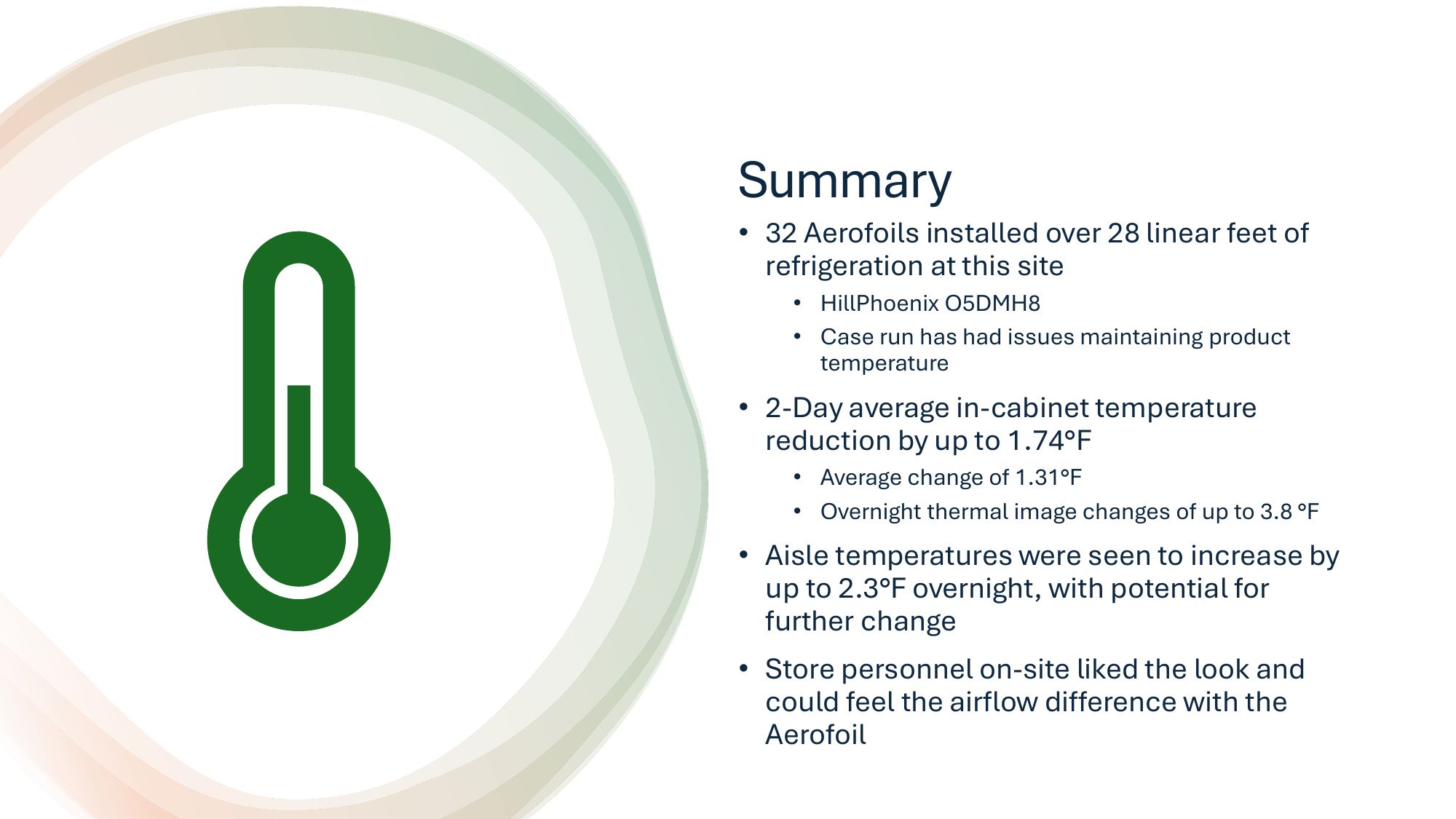

Summary findings
1.31°F
In-cabinet temp reduction (avg)
1.74°F
In-cabinet temp reduction (max)
−3.8°F
Overnight thermal: air curtain
+2.3°F
Aisle temp increase (less spill)
3.2°F
Max product temp reduction
1.6°F
Min product temp reduction

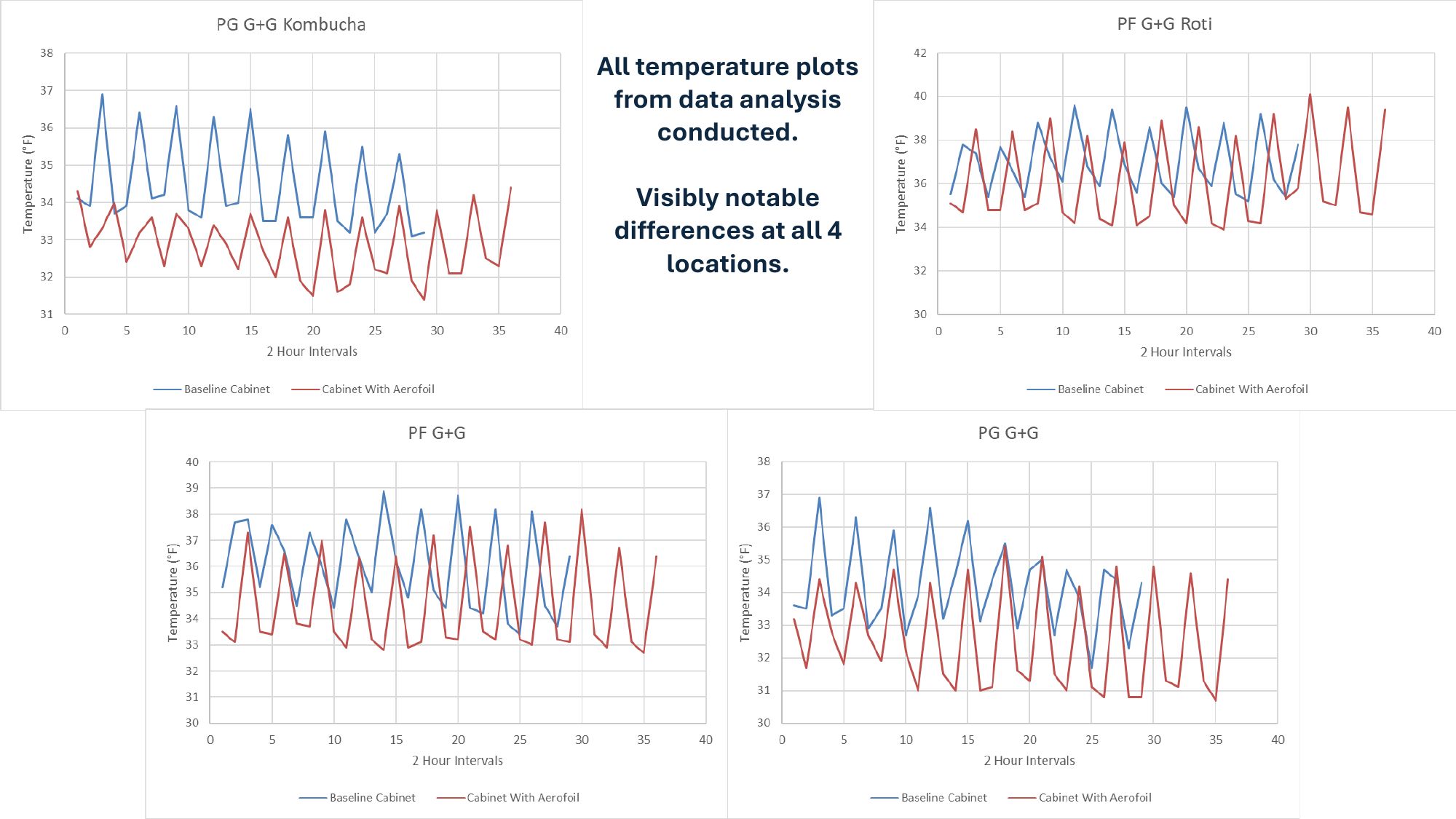

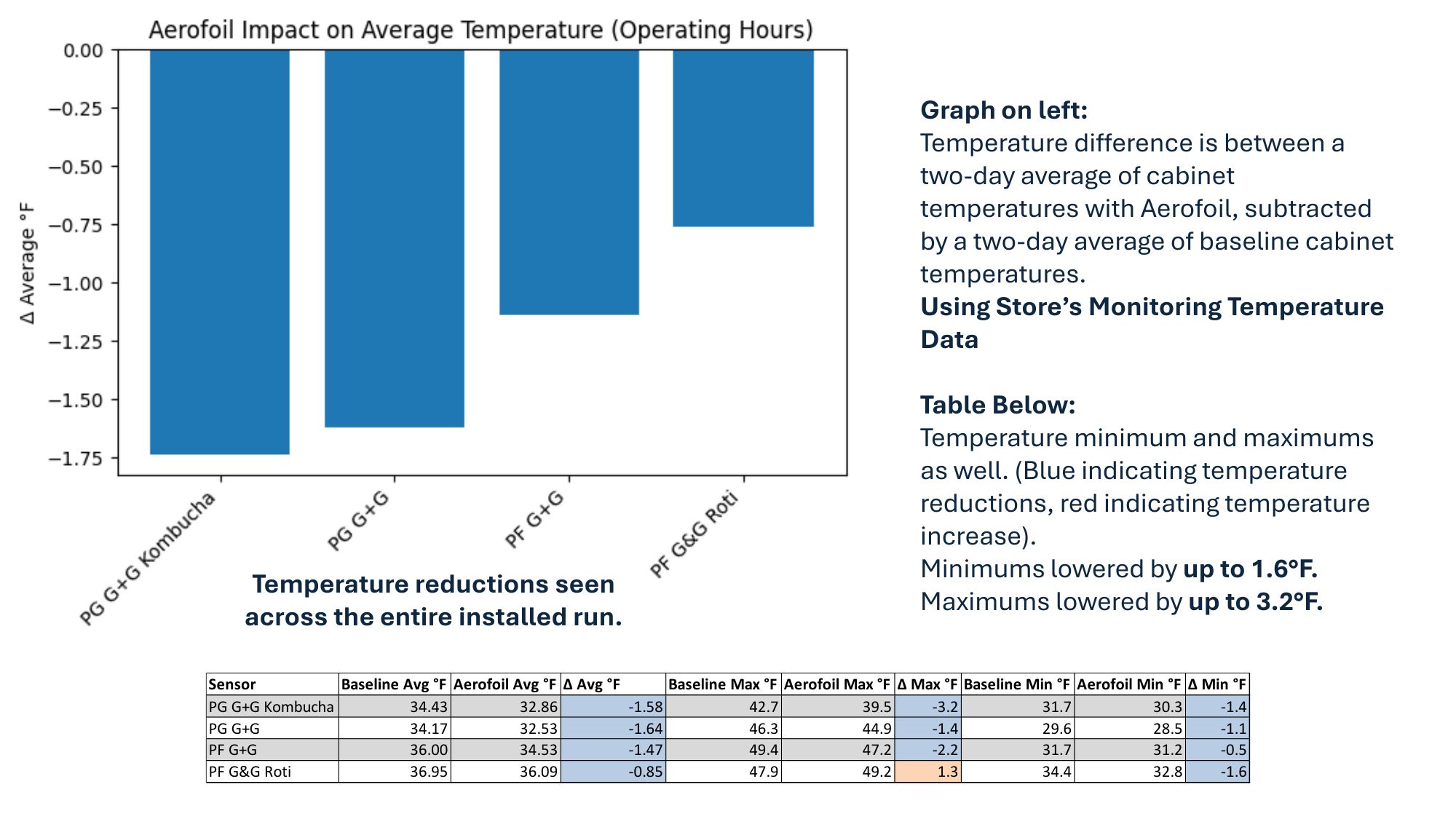

Operating-hours temperature data
2-day baseline average vs 2-day Aerofoil average. Source: store monitoring data.
| Sensor | Baseline avg (°F) | Aerofoil avg (°F) | Δ Avg | Δ Max | Δ Min |
|---|---|---|---|---|---|
| PG G+G Kombucha | 34.43 | 32.86 | −1.58 | −3.2 | −1.4 |
| PG G+G (Pizza) | 34.17 | 32.53 | −1.64 | −1.4 | −1.1 |
| PF G+G | 36.00 | 34.53 | −1.47 | −2.2 | −0.5 |
| PF G&G Roti | 36.95 | 36.09 | −0.85 | +1.3 | −1.6 |
PF G&G Roti showed a +1.3°F increase in maximum temperature — the only outlier in the dataset. Average and minimum temperatures still improved.

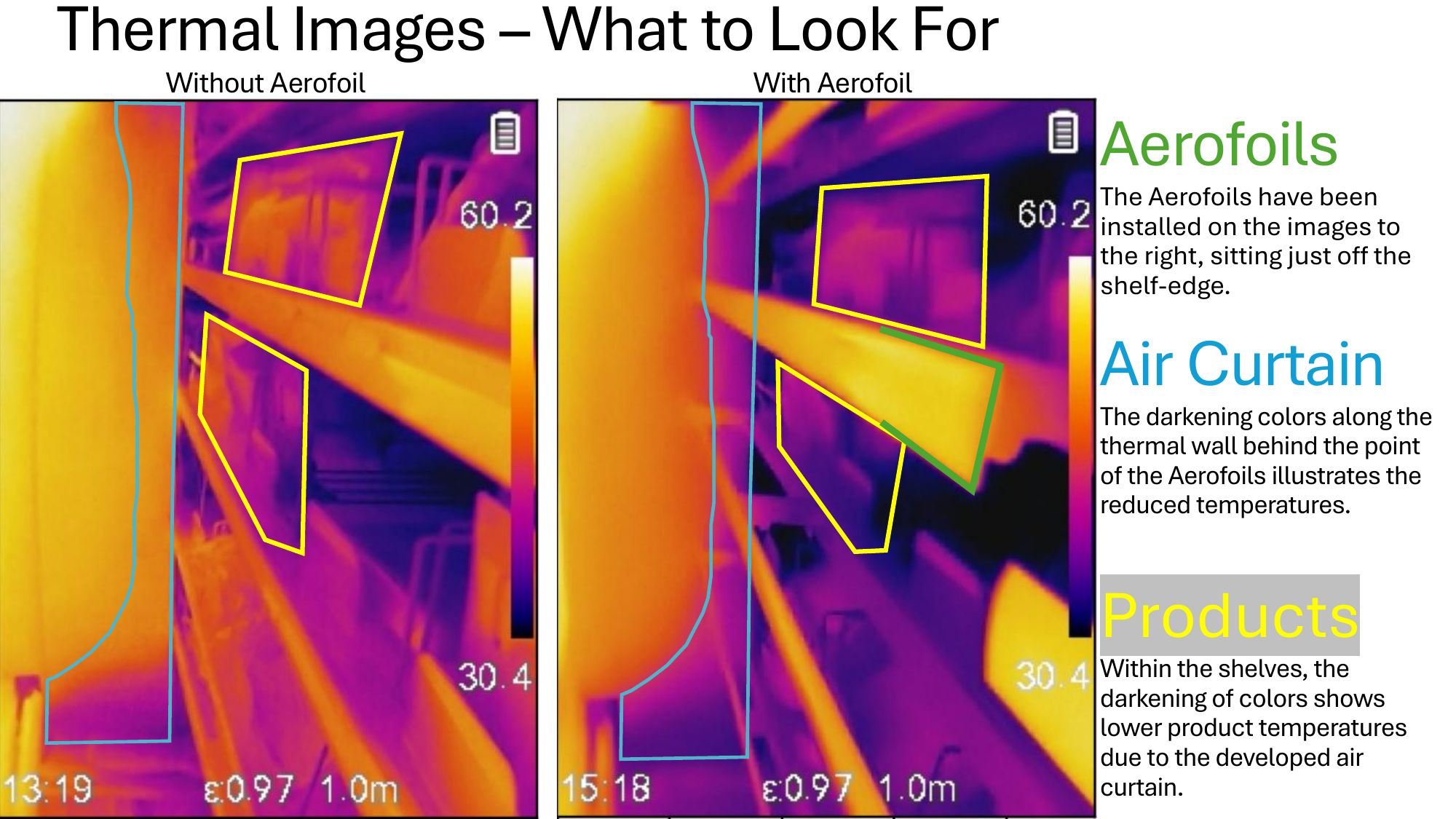

Thermal imaging — Deli (PF G+G Roti): air curtain reduction
Side-view temperature reduction at the air curtain, overnight.
| Measurement point | Reduction (°F) |
|---|---|
| Point 1 | −3.1 |
| Point 2 | −3.2 |
| Point 3 | −3.8 |
| Point 4 | −1.9 |

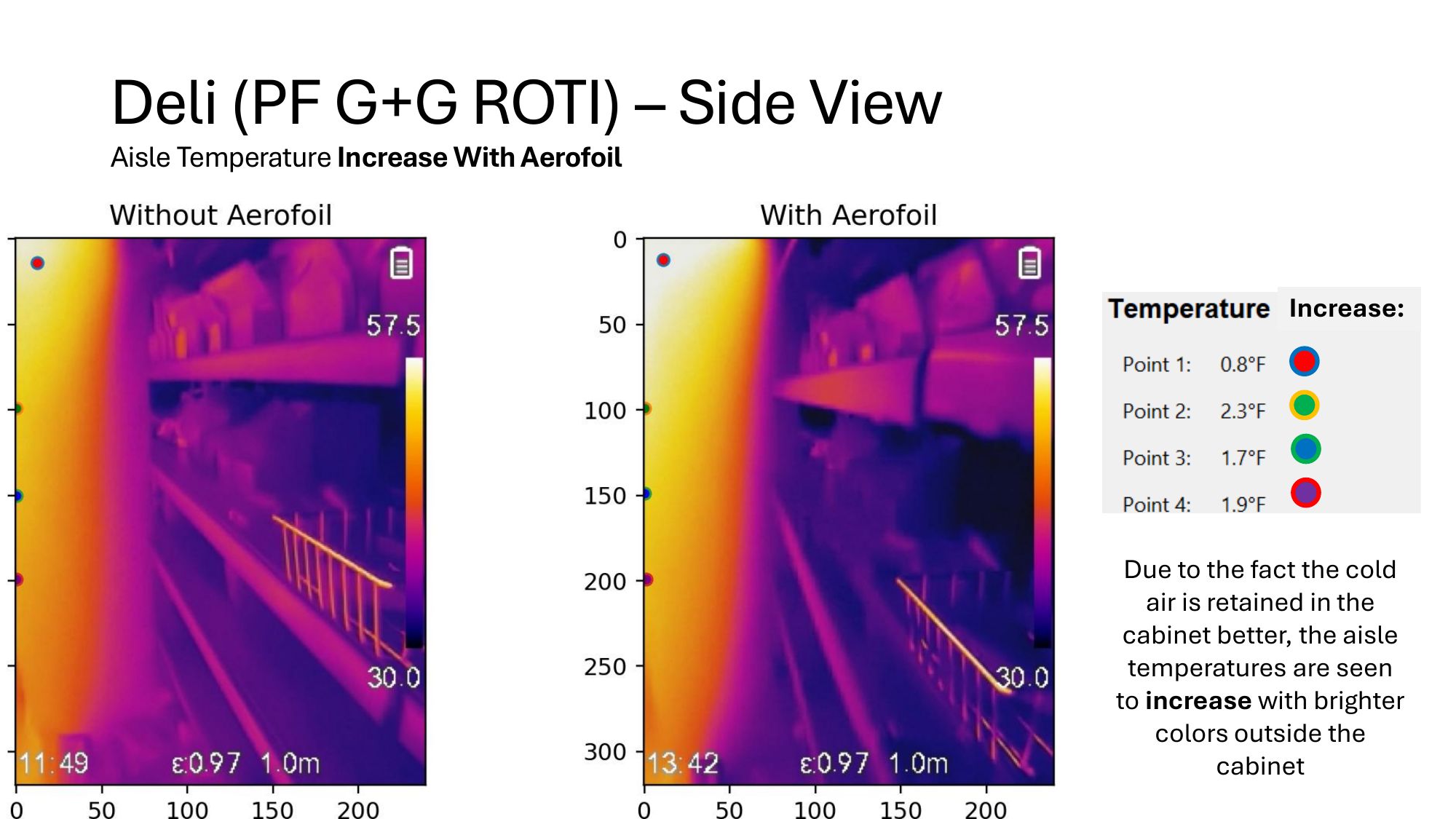

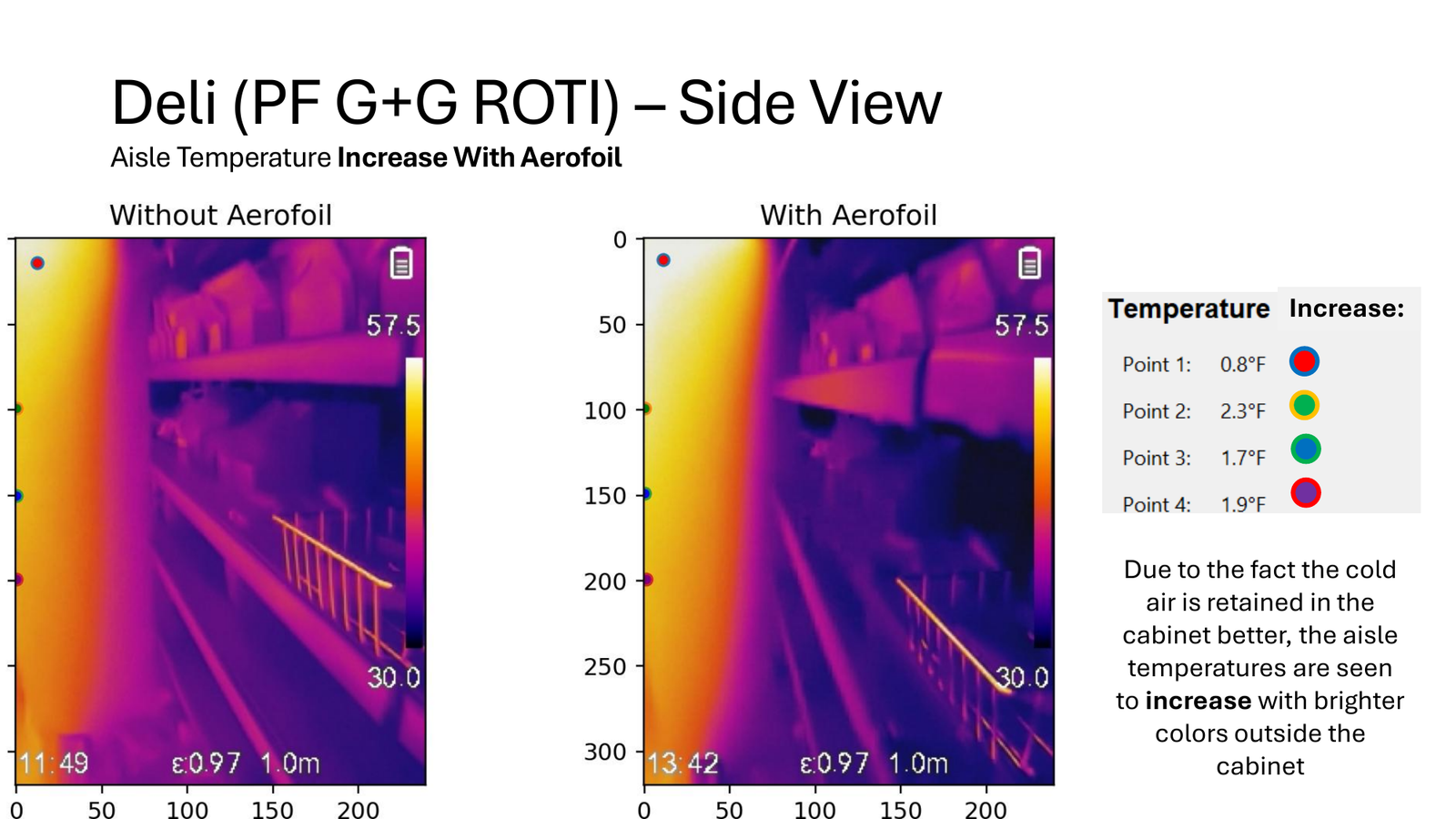

Thermal imaging — Deli: aisle temperature increase
Aisle temperature increase confirms cold air is retained inside the cabinet.
| Measurement point | Increase (°F) |
|---|---|
| Point 1 | +0.8 |
| Point 2 | +2.3 |
| Point 3 | +1.7 |
| Point 4 | +1.9 |

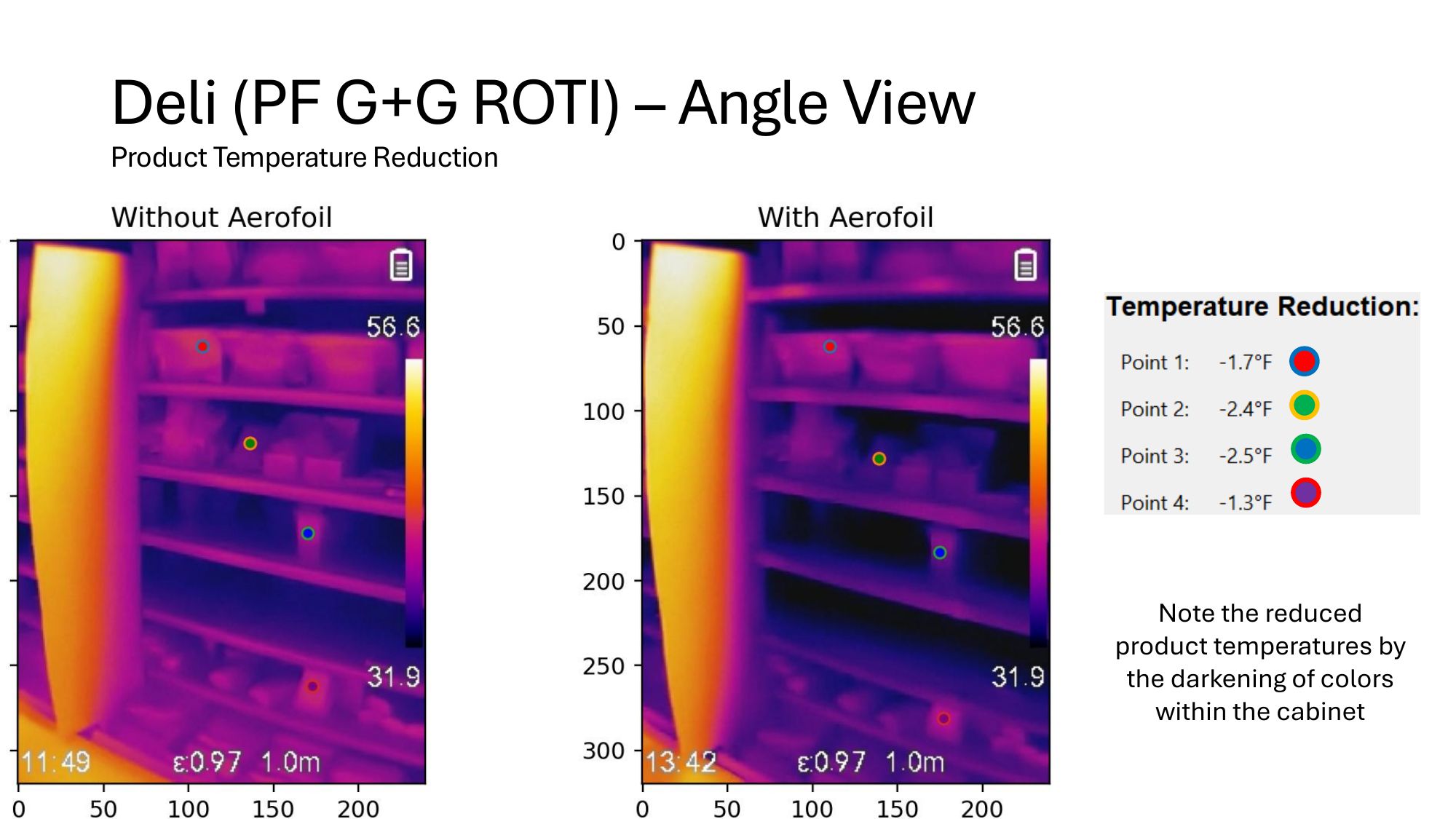

Thermal imaging — Deli: product temperature reduction
Angled-view product temperature reduction.
| Measurement point | Reduction (°F) |
|---|---|
| Point 1 | −1.7 |
| Point 2 | −2.4 |
| Point 3 | −2.5 |
| Point 4 | −1.3 |

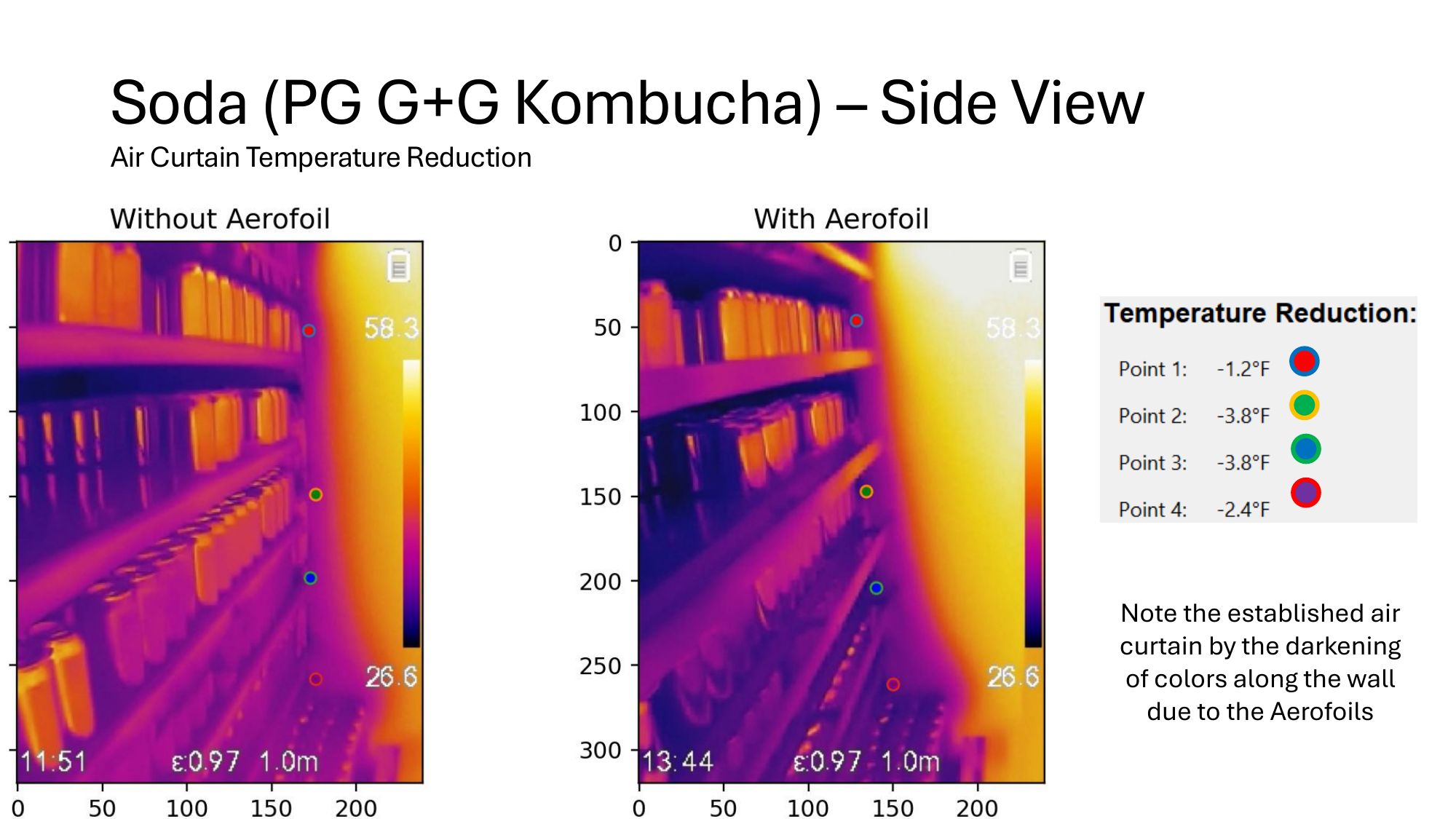

Thermal imaging — Kombucha (PG G+G): air curtain reduction
| Measurement point | Reduction (°F) |
|---|---|
| Point 1 | −1.2 |
| Point 2 | −3.8 |
| Point 3 | −3.8 |
| Point 4 | −2.4 |

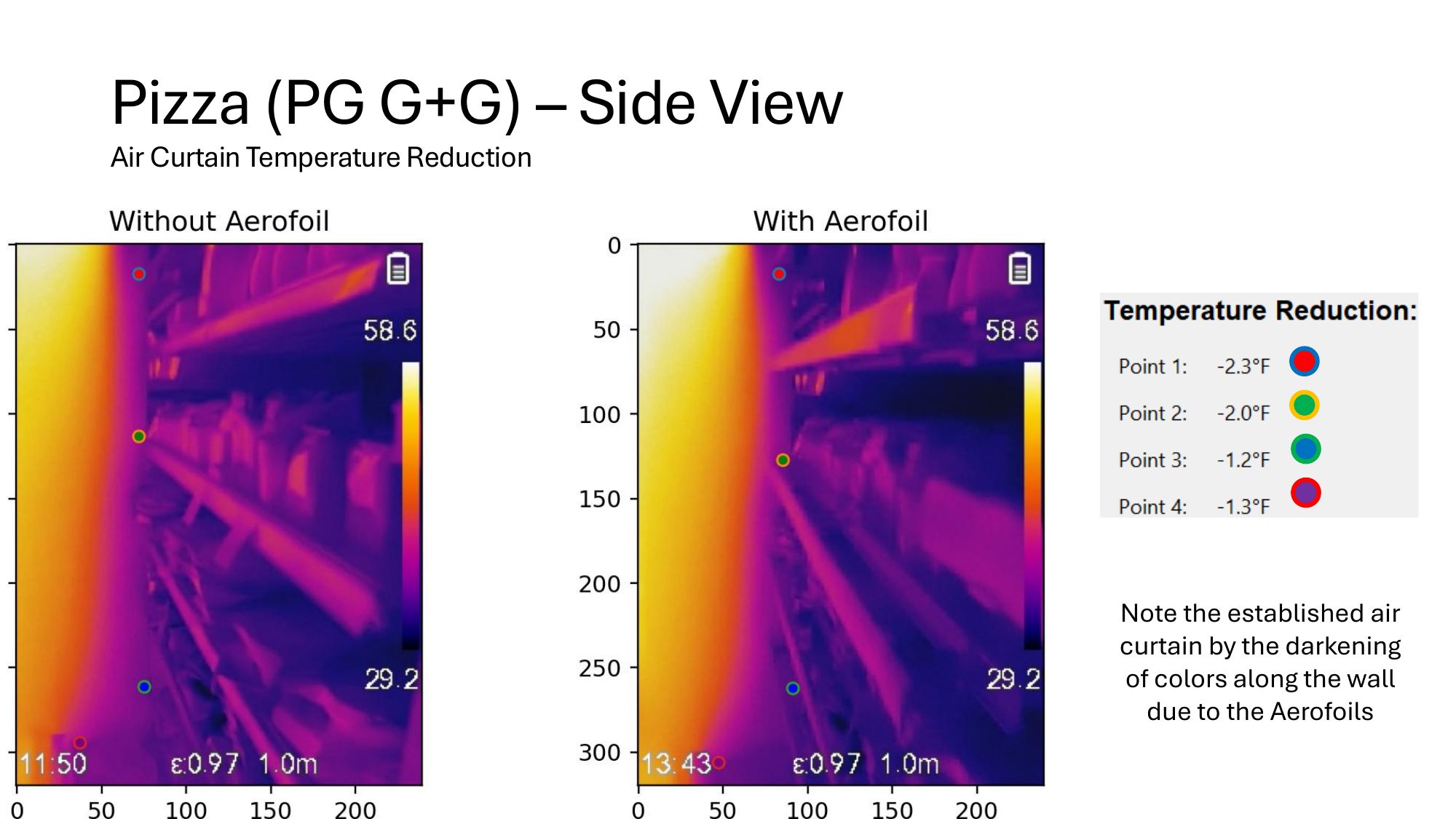

Thermal imaging — Pizza (PG G+G): air curtain reduction
| Measurement point | Reduction (°F) |
|---|---|
| Point 1 | −2.3 |
| Point 2 | −2.0 |
| Point 3 | −1.2 |
| Point 4 | −1.3 |
